Swagger UI for the REST Gateway

Browse, authorize, and test the OpenCue REST API from a browser

August 26, 2026

The OpenCue REST Gateway now ships an interactive Swagger UI at /swagger/. Every OpenCue interface is described by an OpenAPI definition generated from the same .proto files that produce the gateway’s HTTP handlers, so the documented paths and message schemas stay aligned with those sources and cannot drift from them. Routing coverage is narrower than what the definitions describe; Published surface versus routed surface explains where the two differ.

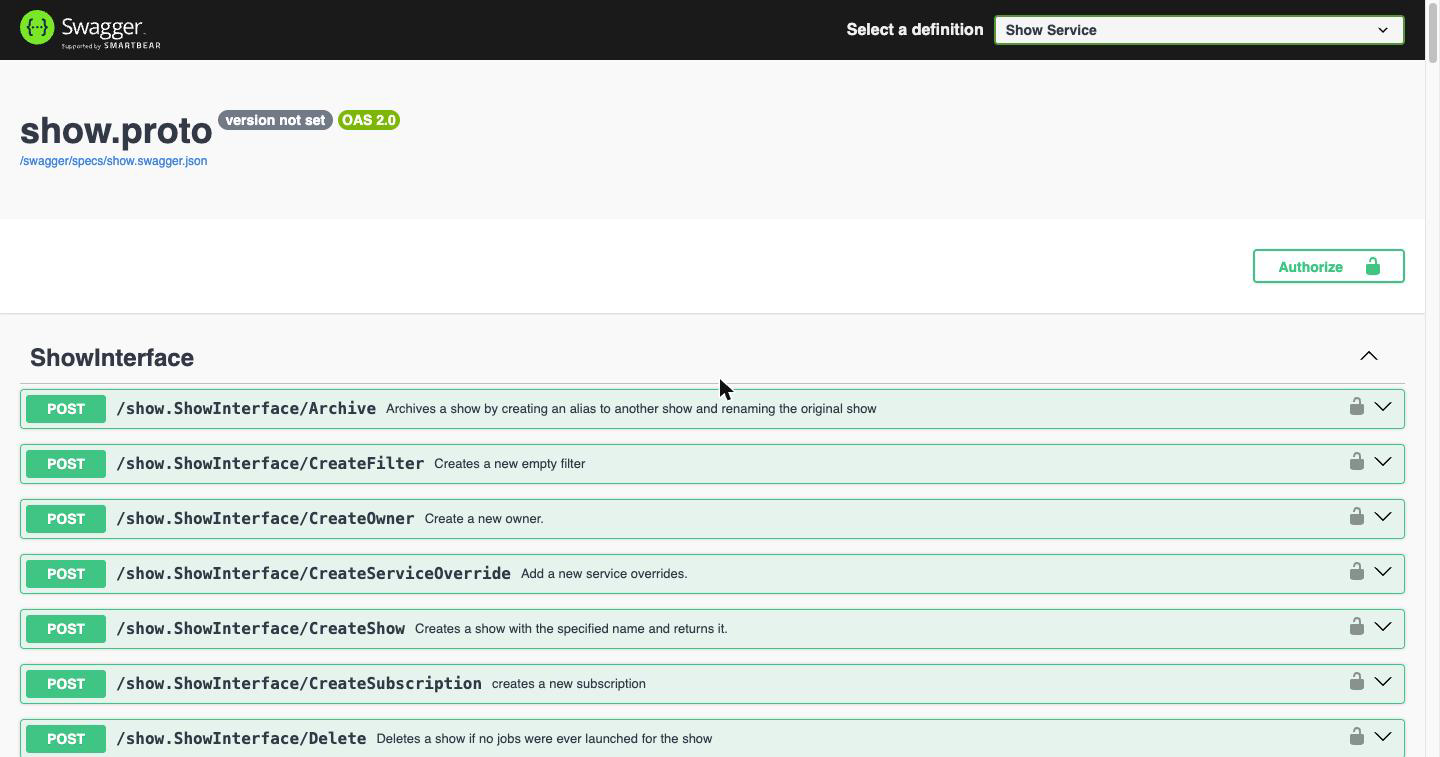

Swagger UI showing the ShowInterface endpoints

The Challenge

Until now, working out how to call the REST Gateway meant reading .proto files, cross-referencing the API reference, and assembling curl commands by hand. Three things made that harder than it needed to be.

The gateway translates gRPC to HTTP using unbound method routing, so an endpoint’s path is derived mechanically from its protobuf service and method: /show.ShowInterface/GetShows. That is easy to generate and hard to guess. Request and response bodies are similarly derived from protobuf messages, with field names camel-cased along the way, so knowing the RPC signature was not quite enough to know the JSON.

Nothing in the running system described itself. A newly deployed gateway offered no way to ask what it could do, which mattered most in exactly the situation where it would help: a fresh deployment, on an isolated network, being verified for the first time.

And every request needs a JWT. Getting a first successful call meant getting the endpoint, the body, and the authentication header all correct simultaneously, with a bare 401 as the only feedback when any one of them was wrong.

The Solution

A definition per proto file

The Docker build now runs protoc-gen-openapiv2 over the OpenCue protos and packages the result into the image. The gateway discovers those documents at request time and renders them, so the Select a definition menu always reflects what the running binary was built with. There are 18 definitions covering 304 endpoints. A single definition can hold several interfaces: Job Service alone covers JobInterface, LayerInterface, FrameInterface, and GroupInterface.

Each document is downloadable on its own, which is enough to generate a typed client:

curl -s http://localhost:8448/swagger/specs/show.swagger.json -o show.swagger.json
openapi-generator generate -i show.swagger.json -g python -o ./opencue-show-client

Authorize once, then try anything

Click Authorize and paste a JWT. The Bearer prefix is optional; the page adds it if you leave it off.

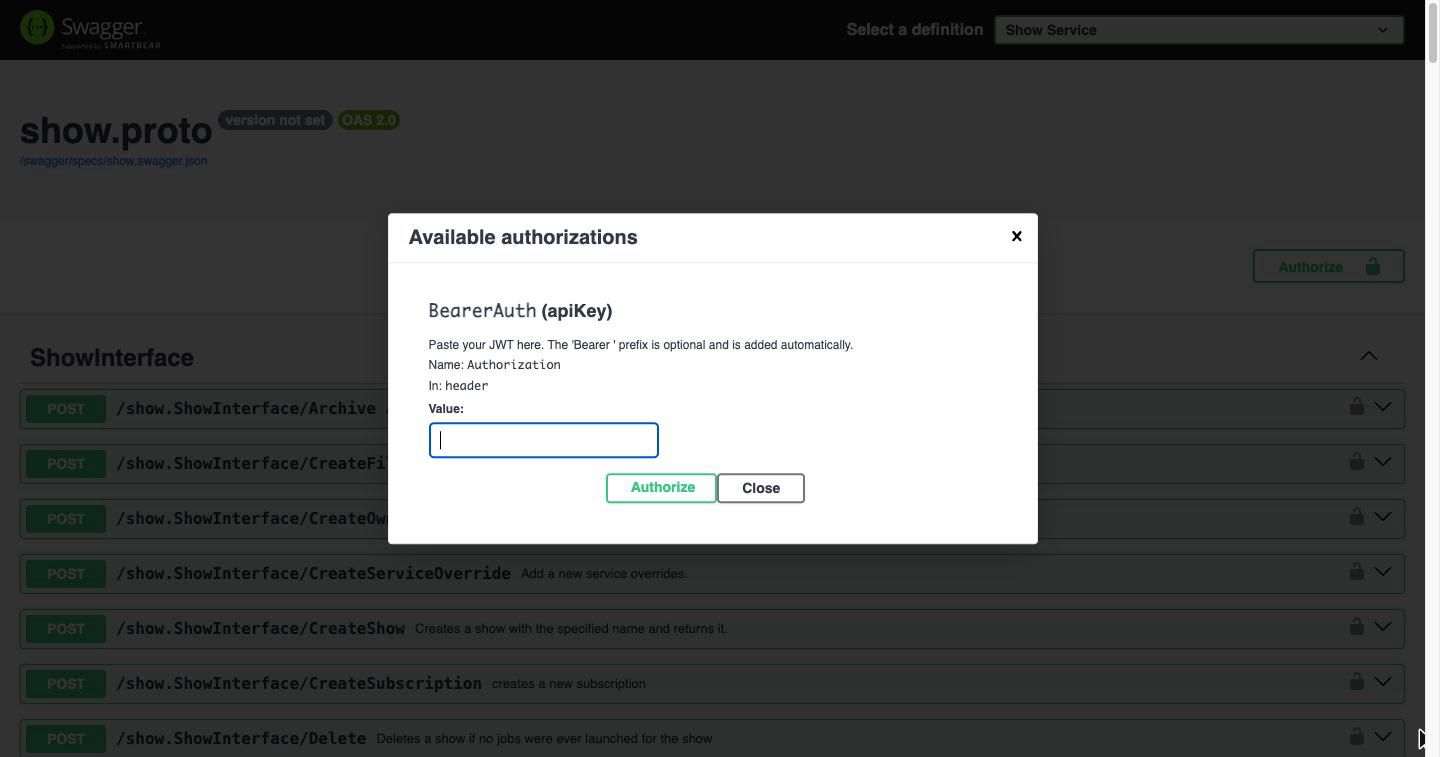

The Authorize dialog

From there, Try it out on any endpoint sends a real request to your farm and shows the response, the response headers, and the equivalent curl command. That last part turns the page into a request builder: work out the call in the browser, then copy the command into a script.

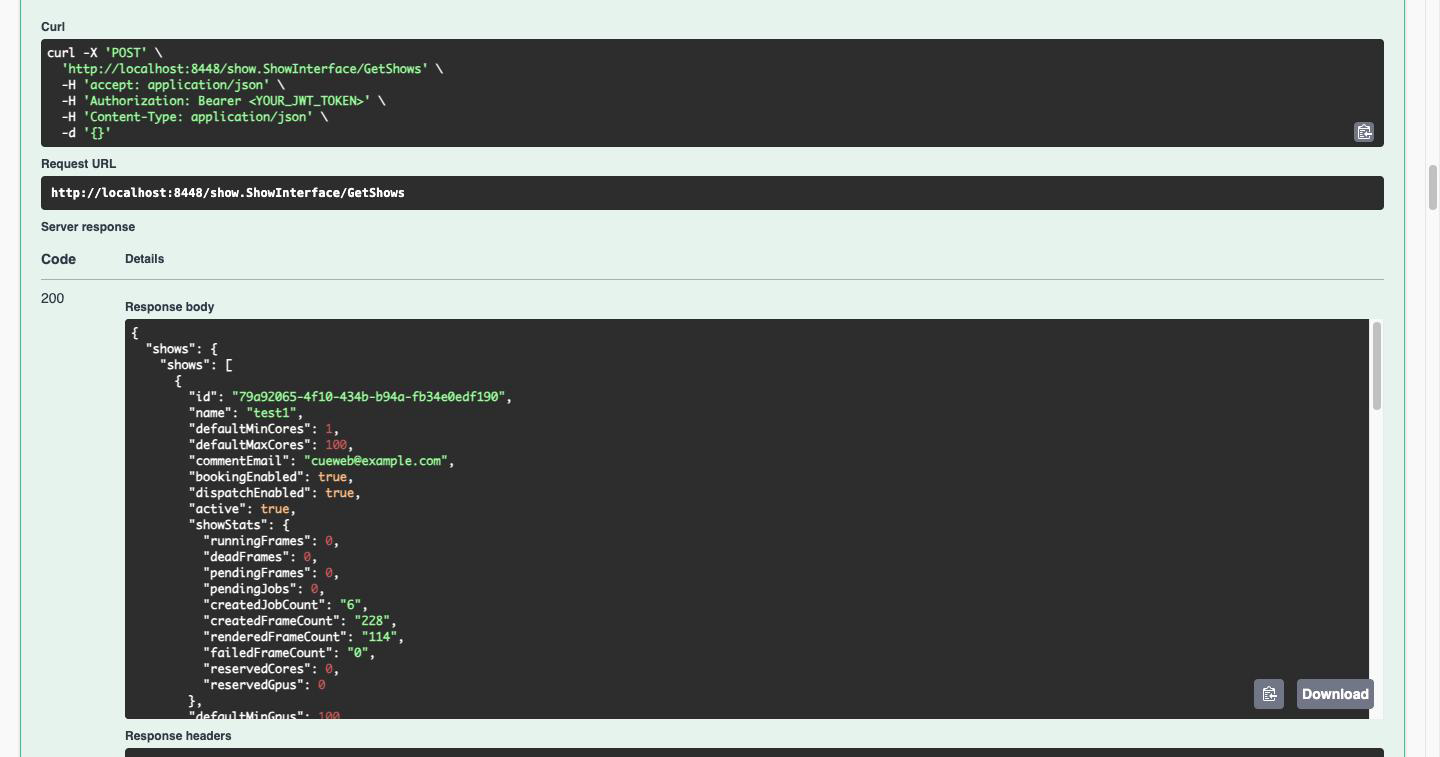

A live 200 response from GetShows

Served locally

The Swagger UI JavaScript and CSS are embedded in the gateway binary rather than loaded from a CDN, so the page works on an air-gapped render farm. Only the three asset files the page references are served; the upstream distribution’s demo page and source maps are not exposed.

Published surface versus routed surface

One nuance is worth knowing before you explore. The definitions are generated with generate_unbound_methods=true, which emits an entry for every method in every .proto file, whereas the gateway registers handlers for a chosen subset. The published surface is therefore slightly wider than the routed one: 304 endpoints across 28 interfaces are described, and 273 across 22 interfaces are reachable.

Six interfaces appear in the menu but return 404 even with a valid token, because this gateway does not register them. Two are implemented by the RQD agent on each host rather than by Cuebot, so there is nothing for the gateway to forward to. The other four are Cuebot services that are internal or agent-facing rather than intended for REST clients.

They are spread across five of the menu entries, so the affected definitions are easy to avoid once you know which they are:

Menu entry Interface Endpoints Implemented by Use instead
Rqd Service RqdInterface, RunningFrame 19 RQD agent HostInterface and FrameInterface, which relay to RQD
Monitoring Service MonitoringInterface 6 Cuebot The Prometheus and Grafana monitoring stack
Report Service RqdReportInterface 3 Cuebot Agent-facing only; RQD calls it to report in
RenderPartition Service RenderPartitionInterface 2 Cuebot AddRenderPartition to create, HostInterface/GetRenderPartitions to list
Cue Service CueInterface 1 Cuebot Internal statistics, no REST equivalent

Every other menu entry is fully routed.

Criterion Service is a further special case: criterion.proto defines only message types and no service, so that definition contains zero endpoints and renders as a Models section with nothing else. The API reference carries the full map.

Security

The /swagger/ routes are mounted outside the JWT middleware, so the documentation can be browsed without a token. The API endpoints are unchanged and still reject unauthenticated requests.

This is a deliberate trade-off. It makes the API easy to explore, and it also means anyone who can reach the gateway’s port can read the complete API surface, including the interfaces, the method names, and the message schemas. No data is exposed and no operation can be performed without a valid token, but the shape of the system is visible.

Deployments where the gateway is reachable beyond a trusted network should switch the UI off:

docker run -d --name opencue-rest-gateway \
  -e CUEBOT_ENDPOINT=cuebot:8443 \
  -e REST_PORT=8448 \
  -e JWT_SECRET="$JWT_SECRET" \
  -e SWAGGER_ENABLED=false \
  -p 8448:8448 \
  opencue/rest-gateway:latest

With SWAGGER_ENABLED=false the routes are not mounted at all and /swagger/ falls through to the authenticated handler, returning 401. The alternative is to keep the UI and restrict the path at your reverse proxy.

Configuration

Variable Default Description
SWAGGER_ENABLED true Mount the /swagger/ routes. false, 0, no, or off disables them
SWAGGER_DIR ./gen/openapiv2 Directory holding the generated OpenAPI documents. The Docker image sets this to /app/gen/openapiv2
Route Serves Auth
/swagger/ The Swagger UI page None
/swagger/specs/<name>.swagger.json One OpenAPI 2.0 document None
/swagger/assets/ Swagger UI JavaScript and CSS None

Availability

The Swagger UI is available now in the REST Gateway. It is on by default, so rebuilding the gateway image is all that is required:

docker compose build rest-gateway
docker compose --profile all up -d rest-gateway
open http://localhost:8448/swagger/
