CueGUI: CueCommander Administration System

CueGUI is the graphical user interface for OpenCue, divided into two main workspace views:

Cuetopia: The artist-focused view for monitoring and managing render jobs
CueCommander: The administrator-focused view for system monitoring and host management

CueCommander is the administrator-focused workspace within CueGUI, providing comprehensive tools for managing and monitoring OpenCue render farms. While Cuetopia serves artists and production users, CueCommander empowers system administrators, render wranglers, Production Services and Resources (PSR) team, and pipeline Technical Directors (TDs) with advanced control over allocations, hosts, services, and system resources.

Introduction

CueCommander is designed for render farm administrators who need deep visibility and control over the OpenCue infrastructure. It provides specialized windows for managing compute resources, troubleshooting issues, and optimizing farm performance. The interface exposes administrative functions that directly affect farm operations, making it essential for maintaining efficient render operations at scale.

Target Audience

System Administrators: Managing farm infrastructure and resources
Render Wranglers / Production Services and Resources (PSR) team: Monitoring and troubleshooting active jobs and stuck frames
Pipeline Technical Directors (TDs): Configuring services, limits, and allocations
Operations Teams: Overseeing facility-wide render capacity and subscriptions

Core Capabilities

Real-time monitoring of jobs, hosts, and resource allocation
Management of allocations, limits, and service configurations
Troubleshooting tools for stuck frames and problematic jobs
Resource redirection and optimization features
Subscription management and visualization
Show configuration and administration

System Overview

CueCommander shares the same application framework as Cuetopia but presents administrator-specific plugins. The interface consists of:

Application Layout

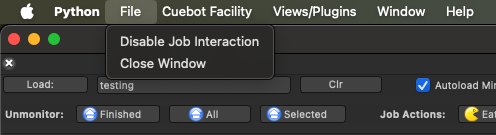

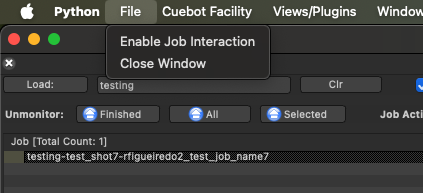

Menu Bar: Access to File, Edit, View/Plugins, Window, and Help menus
Plugin Windows: Each administrative function runs in its own independent window
Tab Navigation: Bottom tabs allow quick switching between open plugins
Status Bar: Displays connection status and current facility

Window Management

All windows are dockable/detachable and can be arranged to suit workflow preferences
Window states are saved between sessions
Multiple instances of the same plugin can be opened
Windows can be floated or tabbed together

Plugin Windows

1. Allocations

How to Open: Go to View/Plugins > Cuecommander > Allocations

The Allocations window provides centralized management of render farm resource allocations, allowing administrators to monitor and control how compute resources are distributed across different departments, shows, or facilities.

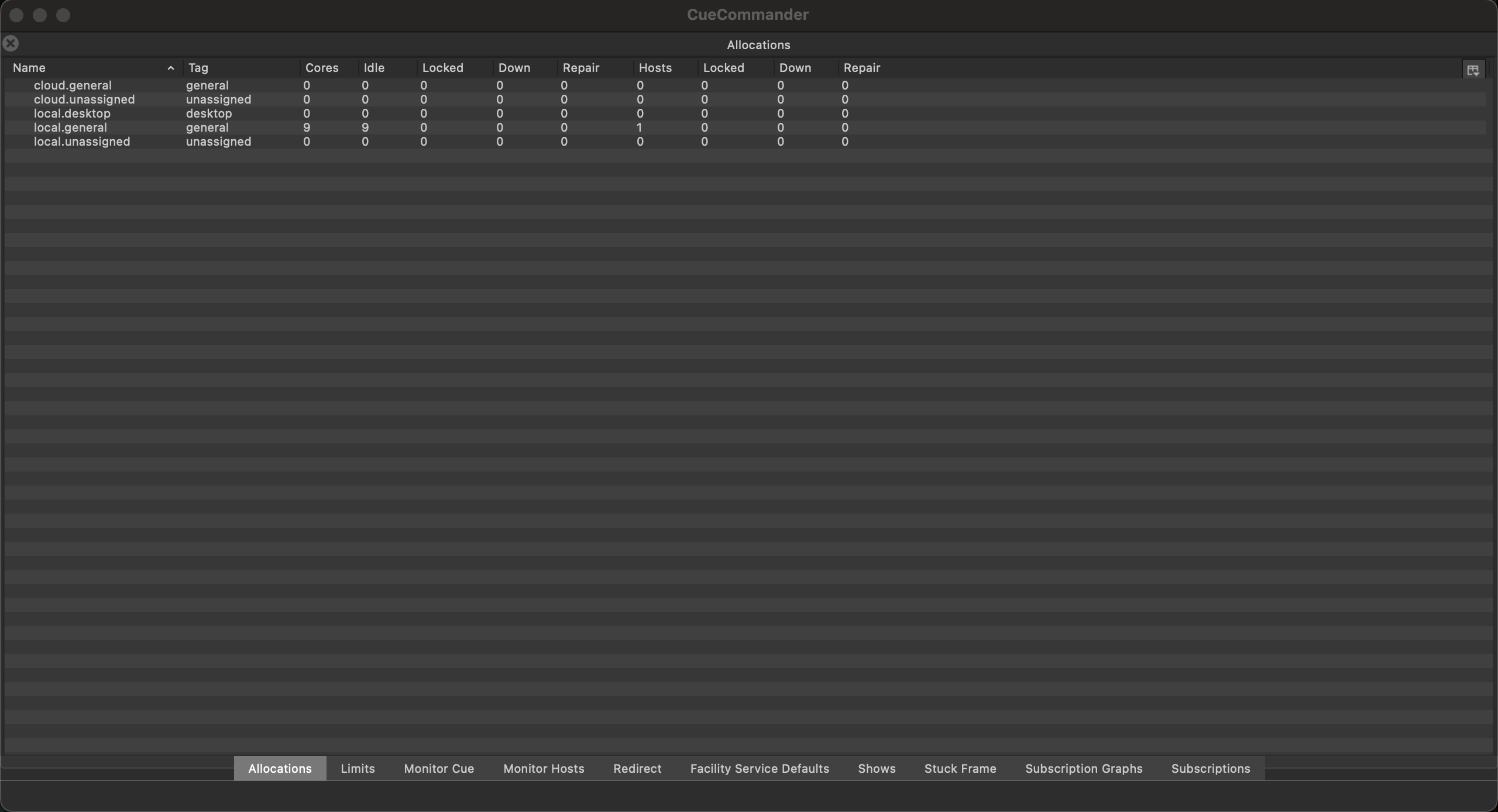

Allocations Interface

Purpose

Manages the assignment of compute resources (cores and hosts) to specific allocations, which determine render capacity available to different shows or departments. Allocations are fundamental to OpenCue’s resource management, ensuring fair distribution of farm resources.

Key Features

Allocation Table Columns:

Name: Allocation identifier (e.g., “cloud.general”, “local.desktop”)
Tag: Allocation tag for categorization
Cores: Total cores assigned to the allocation
Idle: Currently available/unused cores
Locked: Cores locked from use
Down: Cores on hosts marked as down
Repair: Cores on hosts in repair state
Hosts: Total number of hosts in allocation
Locked (Hosts): Number of locked hosts
Down (Hosts): Number of down hosts
Repair (Hosts): Number of hosts in repair

Interactive Features:

Drag-and-drop hosts between allocations
Real-time resource utilization updates
Context menu actions for allocation management
Automatic refresh every 60 seconds

Usage Instructions

Monitor Resource Distribution:
- Review core counts across allocations
- Identify underutilized allocations (high idle counts)
- Check for hosts in problematic states (down/repair)
Reassign Hosts:
- Select hosts from one allocation
- Drag to target allocation
- Confirm the transfer when prompted
Manage Allocation States:
- Right-click for context menu options
- Lock/unlock allocations as needed
- Modify allocation properties

Common Use Cases

Capacity Planning: Review allocation utilization before launching large jobs
Troubleshooting: Identify allocations with high numbers of down/repair hosts
Resource Balancing: Move idle resources to allocations with high demand
Maintenance: Lock allocations during scheduled maintenance windows

2. Limits

How to Open: Go to View/Plugins > Cuecommander > Limits

The Limits window manages render limits that control concurrent resource usage across the farm, preventing resource exhaustion and ensuring stable operations.

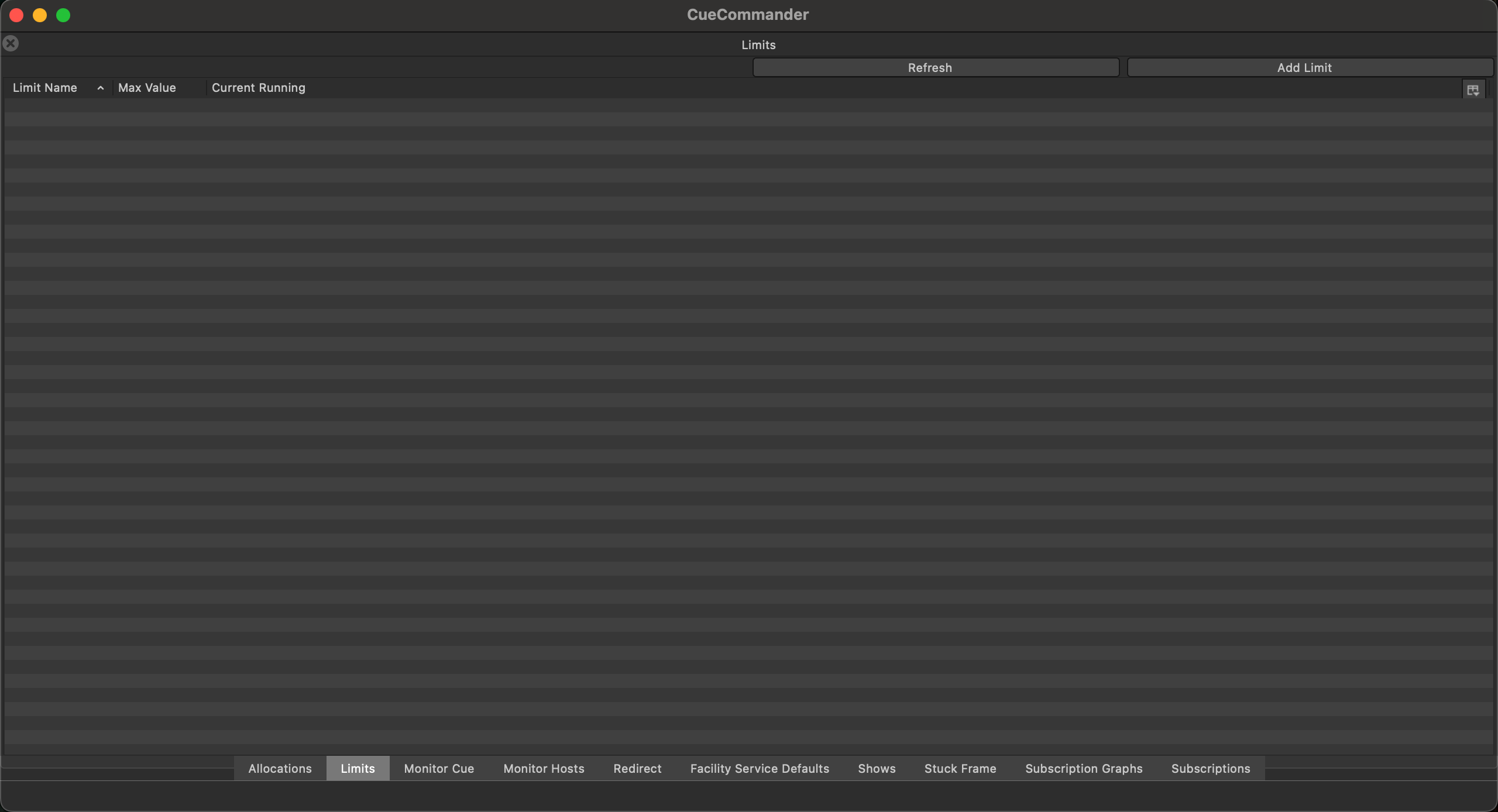

Limits Interface

Purpose

Configures and monitors system-wide limits that restrict how many frames can run simultaneously for specific resource types. Limits prevent jobs from overwhelming shared resources like licenses, storage systems, or databases.

Key Features

Limit Configuration Panel:

Limit Name: Identifier for the limit (e.g., “arnold_licenses”)
Max Value: Maximum concurrent usage allowed
Current Running: Active usage count

Control Actions:

Refresh: Update current usage statistics
Add Limit: Create new resource limits
Edit: Modify existing limit values
Delete: Remove limits (with confirmation)

Usage Instructions

Create a New Limit:
- Click “Add Limit” button
- Enter limit name and maximum value
- Specify associated resources or services
Monitor Usage:
- Watch “Current Running” vs “Max Value”
- Identify limits approaching capacity
- Review historical usage patterns
Adjust Limits:
- Select limit and click Edit
- Modify max value based on available resources
- Apply changes immediately

Common Use Cases

License Management: Limit concurrent software license usage
I/O Protection: Prevent storage system overload
Database Connections: Control simultaneous database queries
Network Bandwidth: Manage render output bandwidth usage

3. Monitor Cue

How to Open: Go to View/Plugins > Cuecommander > Monitor Cue

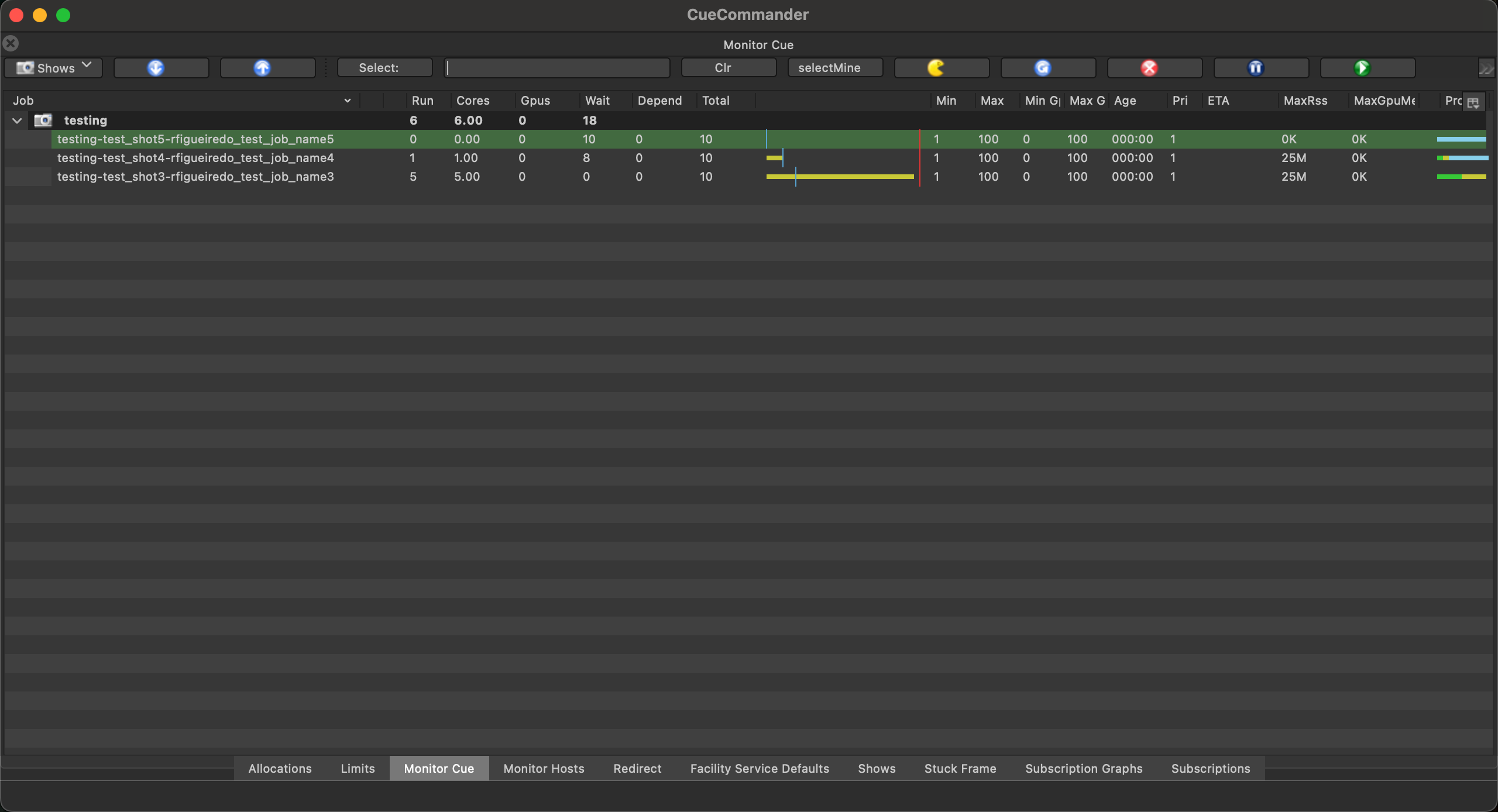

Monitor Cue provides a hierarchical view of the entire render farm structure, displaying shows, groups, and jobs in an expandable tree format with administrative controls.

Monitor Cue Interface

Purpose

Offers comprehensive visibility into the show/group/job hierarchy with administrative actions for managing render jobs at all levels. This is the primary tool for understanding farm-wide job distribution and status.

Key Features

Tree View Components:

Shows Dropdown: Filter by specific shows
Expand/Collapse Controls: Navigate complex hierarchies
Job Status Indicators: Visual status for each job
Resource Metrics: Cores, memory, and runtime statistics

Toolbar Actions:

Clear: Remove completed jobs from view
Select Jobs: Multi-select for batch operations
Eat Dead Frames: Mark failed frames as complete
Retry Dead Frames: Requeue failed frames
Kill Jobs: Terminate selected jobs
Pause/Unpause: Control job execution

Statistics Columns:

Run: Currently running frames
Cores: Allocated cores
Gpus: GPU resources in use
Wait: Frames waiting to run
Depend: Frames with unmet dependencies
Total: Total frame count
Min/Max/Avg: Frame runtime statistics
Priority: Job priority values
Age: Time since job submission

Usage Instructions

Navigate Hierarchy:
- Select show from dropdown
- Expand groups to see jobs
- Use toolbar buttons for quick expand/collapse
Manage Jobs:
- Select multiple jobs with Ctrl/Cmd+Click
- Right-click for context menu
- Use toolbar for common actions
Monitor Performance:
- Sort by resource usage columns
- Identify long-running jobs
- Check dependency bottlenecks

Common Use Cases

Farm Overview: Quick assessment of active shows and job distribution
Bulk Operations: Kill or pause multiple jobs simultaneously
Priority Management: Adjust priorities across job groups
Dependency Resolution: Identify and resolve job dependencies

4. Monitor Hosts

How to Open: Go to View/Plugins > Cuecommander > Monitor Hosts

Monitor Hosts provides detailed information about render nodes, their status, resource utilization, and running processes, essential for farm health monitoring.

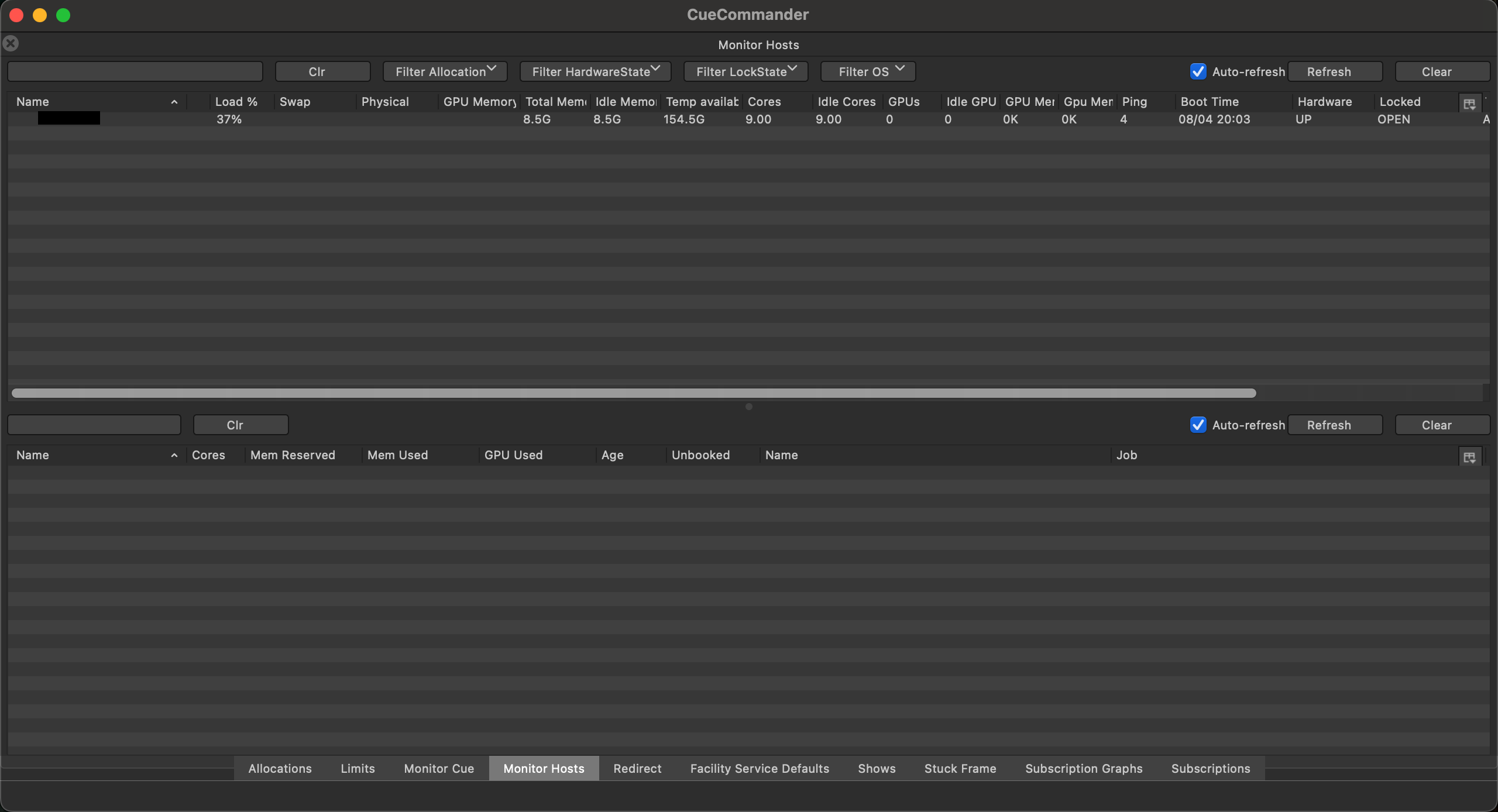

Monitor Hosts Interface

Purpose

Enables real-time monitoring and management of render hosts (nodes), including their hardware specifications, current load, and running processes. Critical for identifying and resolving host-specific issues.

Key Features

Host Table (Top Panel):

Name: Host identifier
Load %: Current CPU utilization
Swap: Swap memory usage
Physical: Physical memory state
GPU Memory: GPU memory statistics
Idle/Total Memory: Memory availability
Temp Available: Temporary disk space
Cores: CPU core information
Idle GPU/Total GPU: GPU availability
Ping: Network responsiveness
Boot Time: Last boot timestamp
Hardware: Host hardware configuration
Locked: Lock status
Thread Mode: Threading configuration
OS: Operating system details
Auto-refresh: Toggle automatic updates

Process Table (Bottom Panel):

Name: Running frame/process name
Cores: Allocated cores
Memory Reserved/Used: Memory allocation
GPU Used: GPU memory usage
Age: Process runtime
Unbooked: Unaccounted resources
Job: Parent job name

Filter Controls:

Clear: Reset all filters
Filter Allocation: Show hosts in specific allocation
Filter HardwareState: Filter by hardware status
Filter LockState: Show locked/unlocked hosts
Filter OS: Filter by operating system

Usage Instructions

Monitor Host Health:
- Check load percentages for overutilization
- Review memory and swap usage
- Identify hosts with high ping times
Manage Host States:
- Right-click hosts for context menu
- Lock hosts for maintenance
- Set thread modes for optimization
- Reboot or repair problematic hosts
Process Investigation:
- Select host to see running processes
- Identify stuck or long-running frames
- Kill problematic processes

Common Use Cases

Performance Troubleshooting: Identify overloaded or underperforming hosts
Maintenance Planning: Lock hosts before updates or repairs
Resource Optimization: Adjust thread modes for better utilization
Issue Resolution: Kill stuck processes or reboot unresponsive hosts

5. Redirect

How to Open: Go to View/Plugins > Cuecommander > Redirect

The Redirect window enables administrators to dynamically reassign running processes from one job to another, useful for priority management and resource optimization.

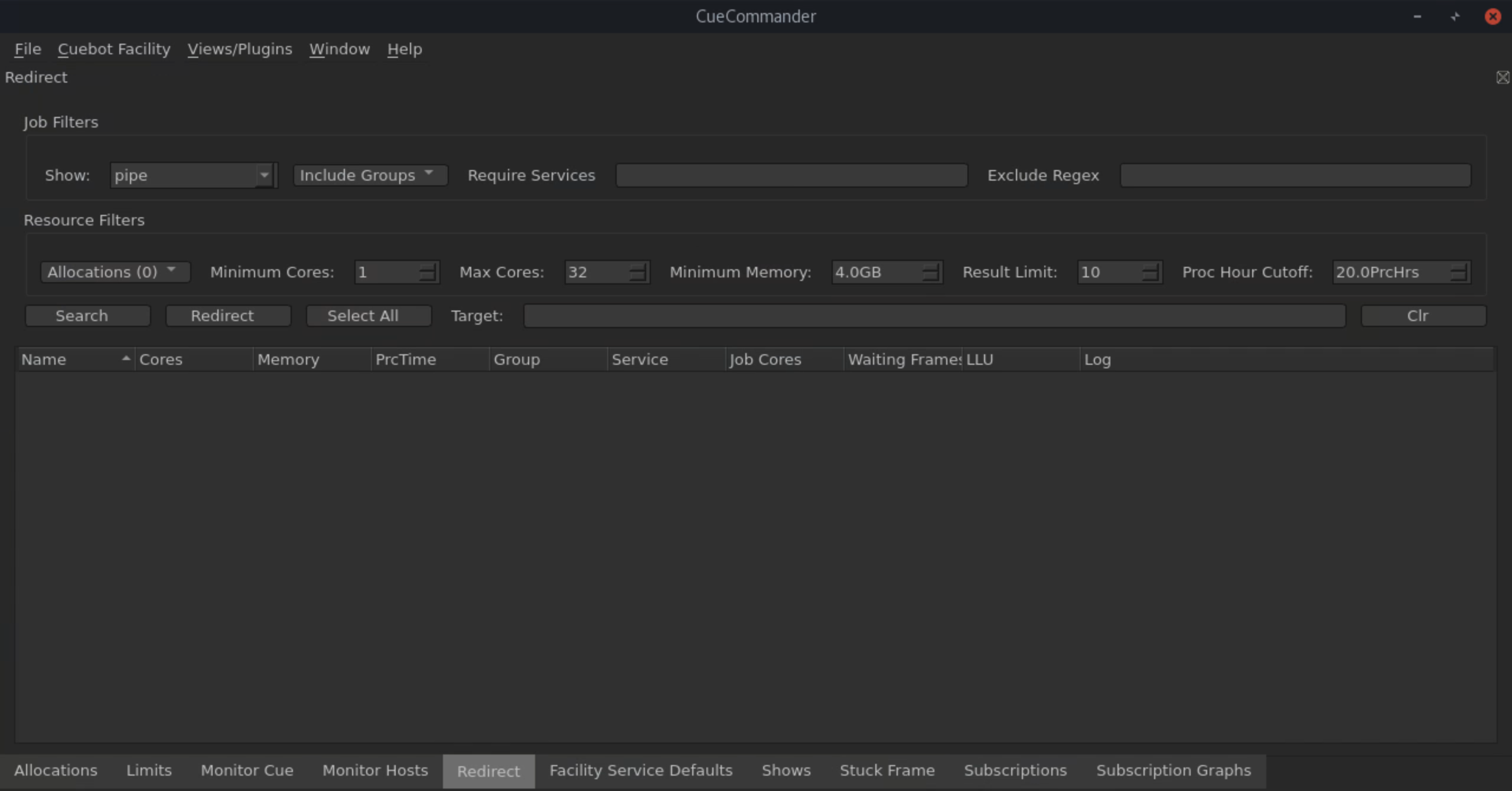

Redirect Interface

Purpose

Allows real-time redirection of compute resources (procs) from lower-priority jobs to higher-priority ones without killing running frames. This advanced feature helps manage urgent deadlines and optimize resource utilization.

Key Features

Redirect Configuration:

Show Selector: Choose show context
Include Groups: Option to show job groups
Require Services: Filter by required services

Resource Filters:

Allocations: Target specific allocations
Minimum Cores: Set minimum core requirements
Max Cores: Limit maximum cores to redirect
Minimum Memory: Memory threshold
Result Limit: Cap number of redirections
Proc Hour Cutoff: Age limit for processes

Job Selection:

Source Job: Job to redirect from
Target Job: Job to redirect to
Clear/Redirect Buttons: Execute or reset operation

Status Display:

Shows redirect operation results
Lists affected frames and hosts
Provides success/failure feedback

Usage Instructions

Setup Redirect:
- Select show and configure filters
- Choose source job (redirect from)
- Choose target job (redirect to)
- Set resource constraints
Execute Redirect:
- Review settings
- Click “Redirect” button
- Monitor operation status
- Verify successful transfers
Monitor Results:
- Check redirected proc count
- Verify target job receives resources
- Ensure source job continues properly

Common Use Cases

Emergency Priority: Redirect resources to urgent deadline jobs
Resource Balancing: Move resources from idle to active jobs
Service Optimization: Redirect based on service requirements
Scheduled Redirects: Time-based resource reallocation

6. Services

How to Open: Go to View/Plugins > Cuecommander > Facility Service Defaults

The Services window manages service configurations that define software and hardware requirements for render jobs across the facility.

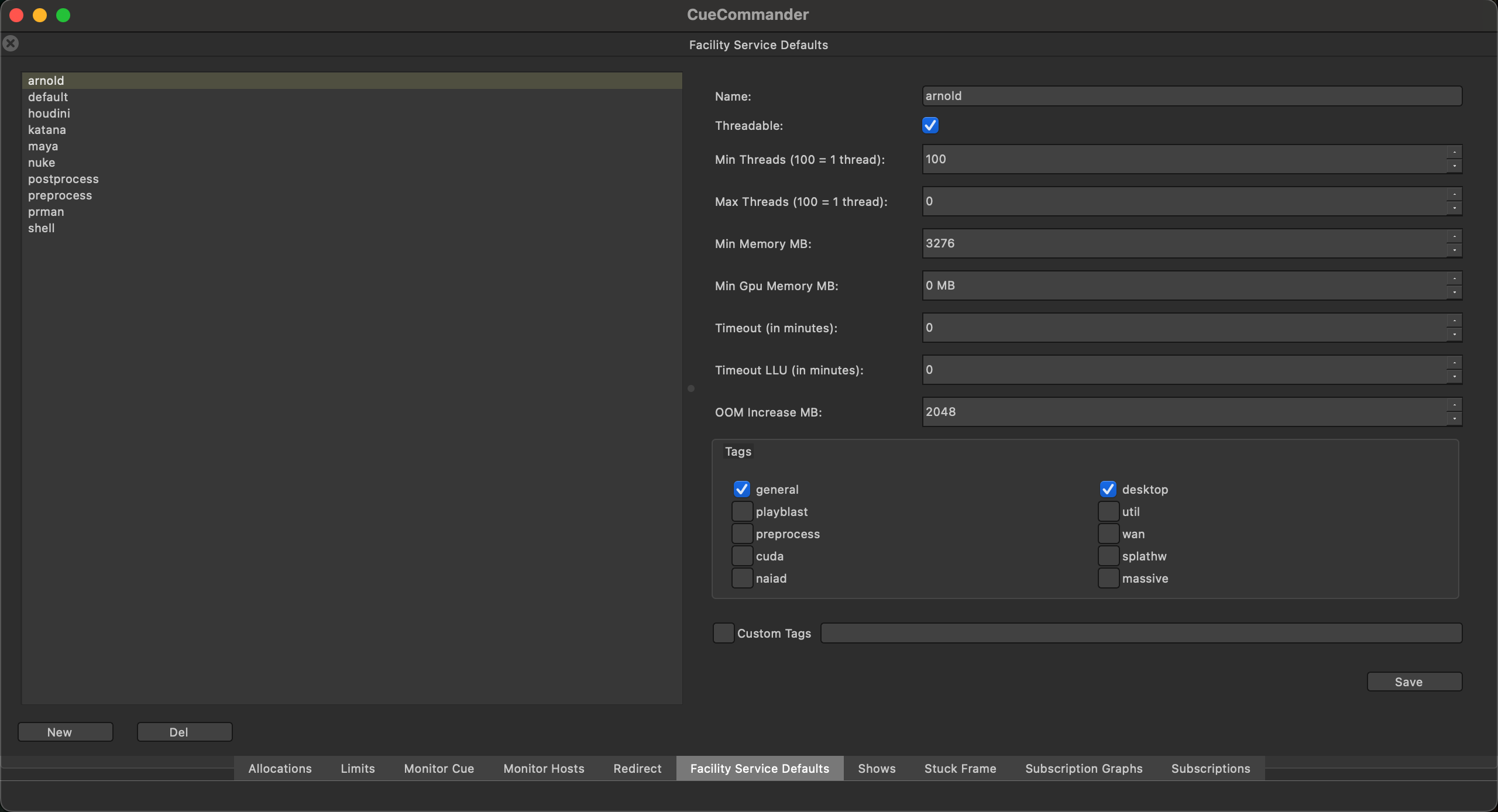

Services Interface

Purpose

Configures facility-wide service definitions that specify resource requirements for different render engines, software packages, and job types. Services ensure jobs run on appropriate hardware with necessary resources.

Key Features

Service List Panel (Left):

Lists all configured services
Shows service names alphabetically
Allows selection for editing

Service Configuration Panel (Right):

Name: Service identifier
Threadable: Whether service supports threading
Min Threads: Minimum thread count (100 = 1 thread)
Max Threads: Maximum thread count
Min Memory MB: Minimum RAM requirement
Min Gpu Memory MB: Minimum GPU memory
Timeout: Frame timeout in minutes
Timeout LLU: Timeout for last log update
Out-Of-Memory (OOM) Increase MB: Memory increase on out-of-memory

Tags Section:

Service tags for categorization
Checkbox selection for multiple tags
Categories: general, desktop, util, splathw, massive

Control Buttons:

New: Create new service
Del: Delete selected service
Save: Apply configuration changes
Custom Tags: Add custom service tags

Usage Instructions

Create Service:
- Click “New” button
- Enter service name and requirements
- Set memory and thread limits
- Select appropriate tags
- Save configuration
Modify Service:
- Select service from list
- Adjust parameters
- Update tag selections
- Click Save to apply
Delete Service:
- Select service
- Click Del button
- Confirm deletion

Common Use Cases

Software Configuration: Define requirements for render engines
Resource Templates: Create standard service profiles
Memory Management: Set appropriate Out-Of-Memory (OOM) thresholds
Performance Tuning: Optimize thread counts for efficiency

7. Shows

How to Open: Go to View/Plugins > Cuecommander > Shows

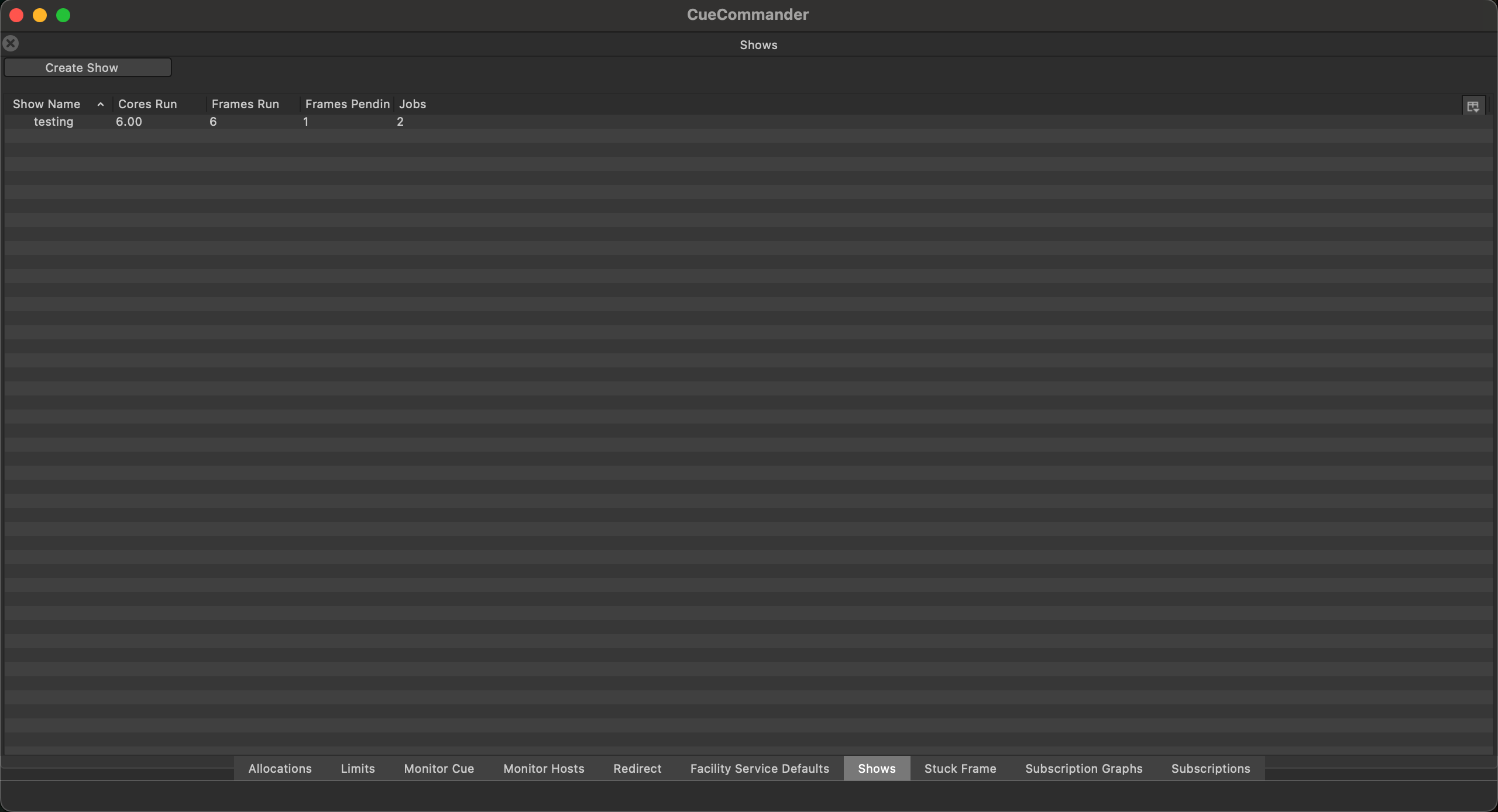

The Shows window provides administrative control over show configurations, allowing creation, modification, and management of show-level settings.

Shows Interface

Purpose

Manages show definitions within OpenCue, including creation of new shows, configuration of show-specific settings, and monitoring of show-level statistics and resources.

Key Features

Shows Table:

Show Name: Show identifier
Cores Run: Currently running cores
Frames Run: Active frame count
Frames Pending: Waiting frames
Jobs: Total job count

Control Elements:

Create Show Button: Launch show creation dialog
Context Menu: Right-click actions
Auto-refresh: Periodic updates

Usage Instructions

Create New Show:
- Click “Create Show” button
- Enter show details in dialog
- Configure allocations and limits
- Submit creation request
Manage Existing Shows:
- Right-click for context menu
- Modify show properties
- View show statistics
- Archive completed shows
Monitor Show Activity:
- Review resource usage
- Check pending frame counts
- Track job distribution

Common Use Cases

Show Setup: Initialize new productions
Resource Allocation: Assign capacity to shows
Show Archival: Clean up completed productions
Capacity Planning: Review show resource requirements

8. Stuck Frame

How to Open: Go to View/Plugins > Cuecommander > Stuck Frame

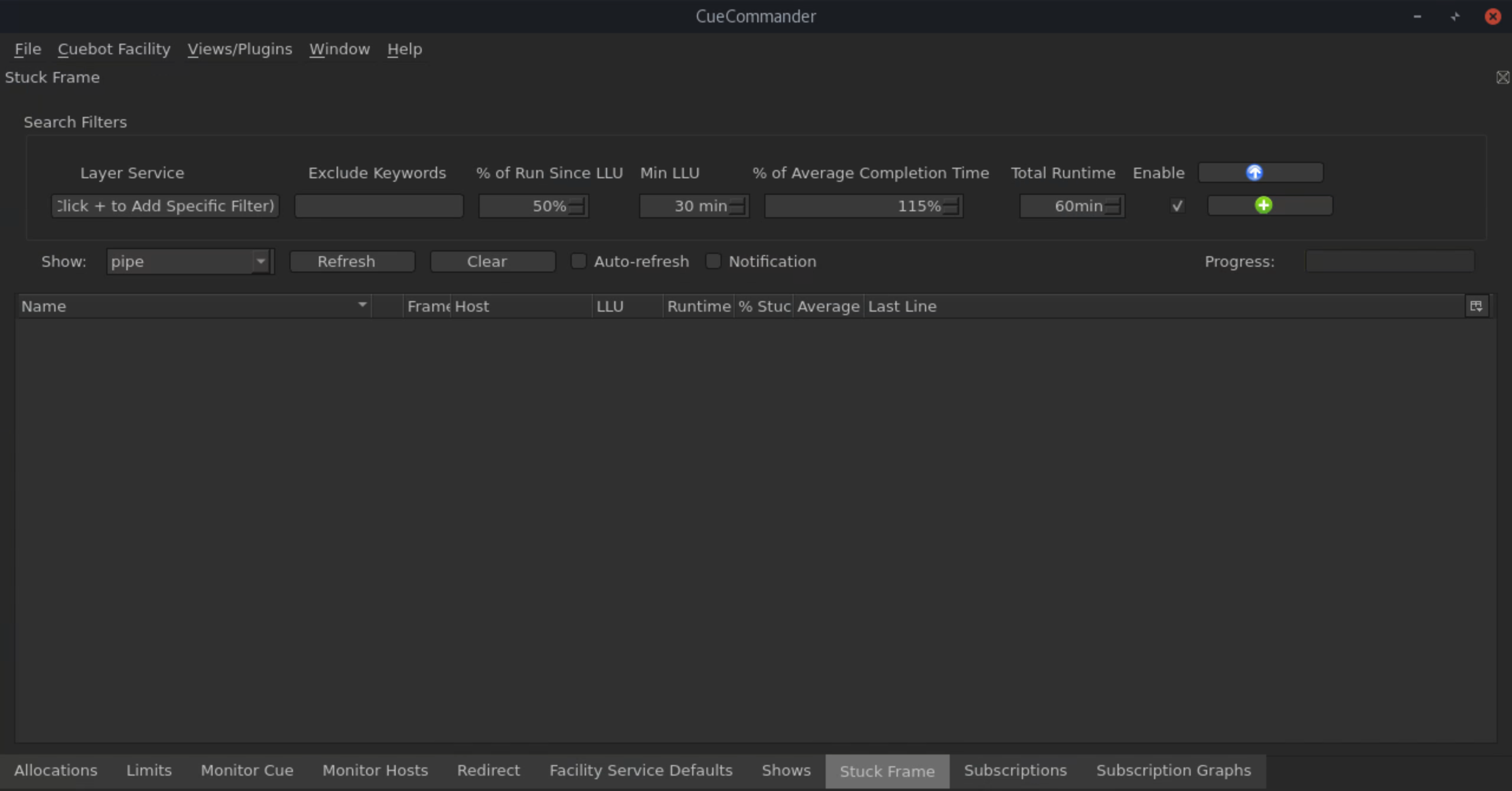

The Stuck Frame window helps identify and resolve frames that appear to be stuck or running abnormally long, preventing job completion.

Stuck Frame Interface

Purpose

Provides specialized tools for detecting frames that are stuck, hung, or running far longer than expected. Enables targeted intervention to resolve problematic frames without affecting entire jobs.

Key Features

Search Filters Section:

Layer Service: Filter by service type
Exclude Keywords: Skip frames matching patterns
% of Run Since LLU: Percentage of runtime since last log
Min LLU: Minimum time since last log update
% of Average Completion Time: Compare to average runtime
Total Runtime: Minimum total runtime threshold
Enable: Activate specific filter

Results Table:

Name: Frame identifier
Comment: Frame comments/notes
Frame Host: Host running the frame
LLU: Last log update time
Runtime %Stuc: Stuck percentage indicator
Average Last Line: Last log output

Control Actions:

Search: Execute filter search
Refresh: Update results
Clear: Reset search criteria
Auto-refresh: Toggle automatic updates
Notification: Enable alerts for stuck frames

Usage Instructions

Configure Filters:
- Set service-specific thresholds
- Add exclude patterns for known long-runners
- Adjust LLU and runtime percentages
- Enable desired filter combinations
Search for Stuck Frames:
- Click Search to apply filters
- Review results table
- Sort by stuck percentage
- Examine last log lines
Resolve Stuck Frames:
- Select problematic frames
- Right-click for context menu
- Kill, retry, or eat frames
- Add comments for tracking

Common Use Cases

Daily Monitoring: Regular checks for stuck frames
Troubleshooting: Identify patterns in stuck frames
Preventive Maintenance: Catch problems before job failure
Performance Analysis: Review frames exceeding expected runtime

9. Subscription Graphs

How to Open: Go to View/Plugins > Cuecommander > Subscription Graphs

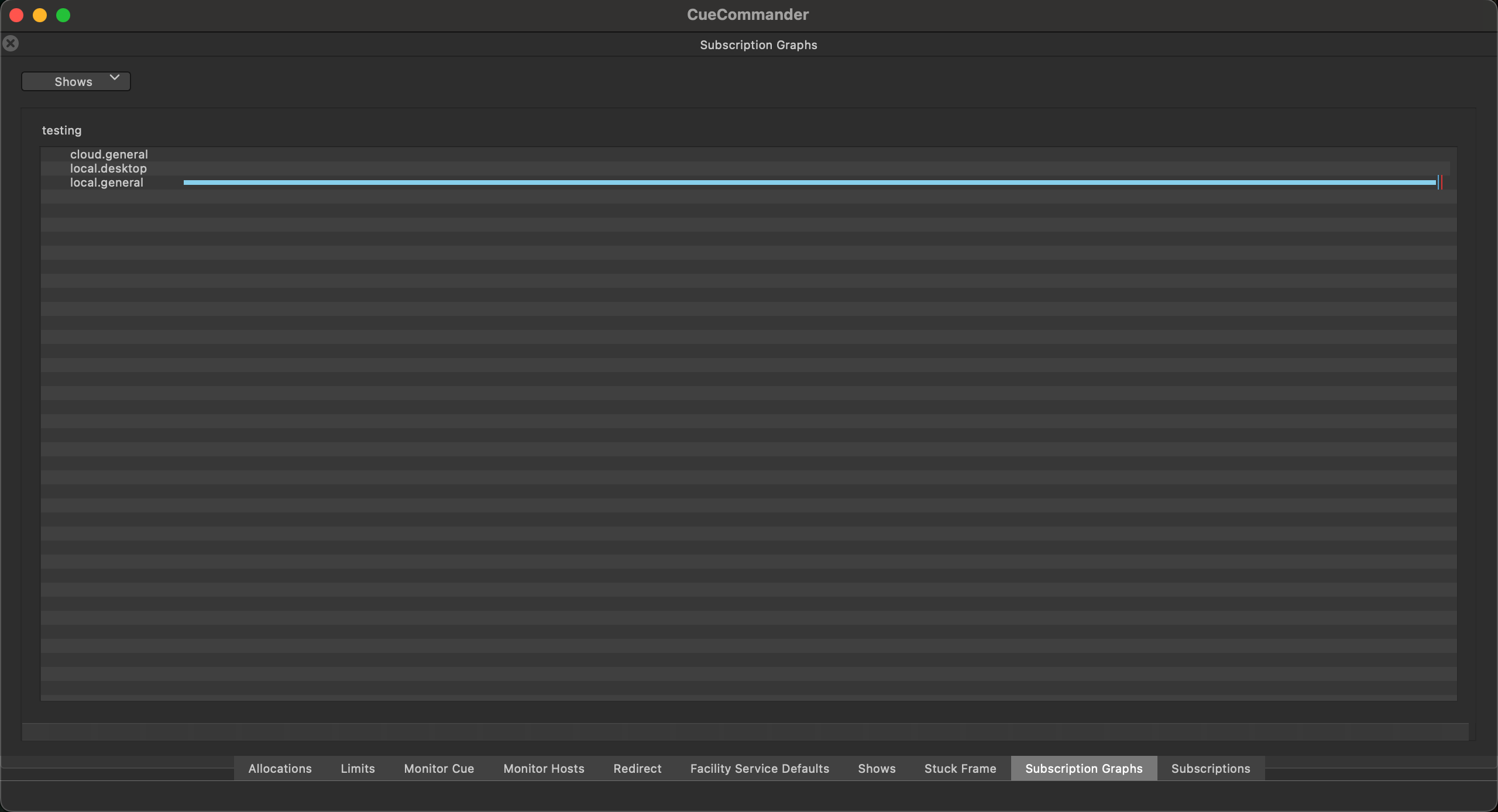

Subscription Graphs provides visual representation of resource allocation and consumption across shows and allocations.

Subscription Graphs Interface

Purpose

Visualizes subscription relationships between shows and allocations, displaying real-time resource utilization through interactive graphs. Essential for understanding resource distribution patterns.

Key Features

Graph Display:

Shows Dropdown: Select show to visualize
Allocation Bars: Horizontal bars showing allocation usage
Color Coding: Visual distinction between allocations
Real-time Updates: Live resource consumption display

Visualization Elements:

Resource usage percentages
Allocation capacity indicators
Show subscription levels
Burst capacity visualization

Usage Instructions

Select Show:
- Choose from shows dropdown
- Graph updates automatically
- View all subscribed allocations
Analyze Usage:
- Review bar lengths for consumption
- Identify underutilized allocations
- Check burst usage patterns
Compare Allocations:
- Visual comparison of allocation sizes
- Relative usage across subscriptions
- Capacity planning insights

Common Use Cases

Capacity Review: Visual assessment of resource distribution
Subscription Planning: Identify needed subscription adjustments
Usage Patterns: Understand show resource consumption
Optimization: Find underutilized subscriptions

10. Subscriptions

How to Open: Go to View/Plugins > Cuecommander > Subscriptions

The Subscriptions window manages the relationships between shows and allocations, controlling how resources are assigned and prioritized.

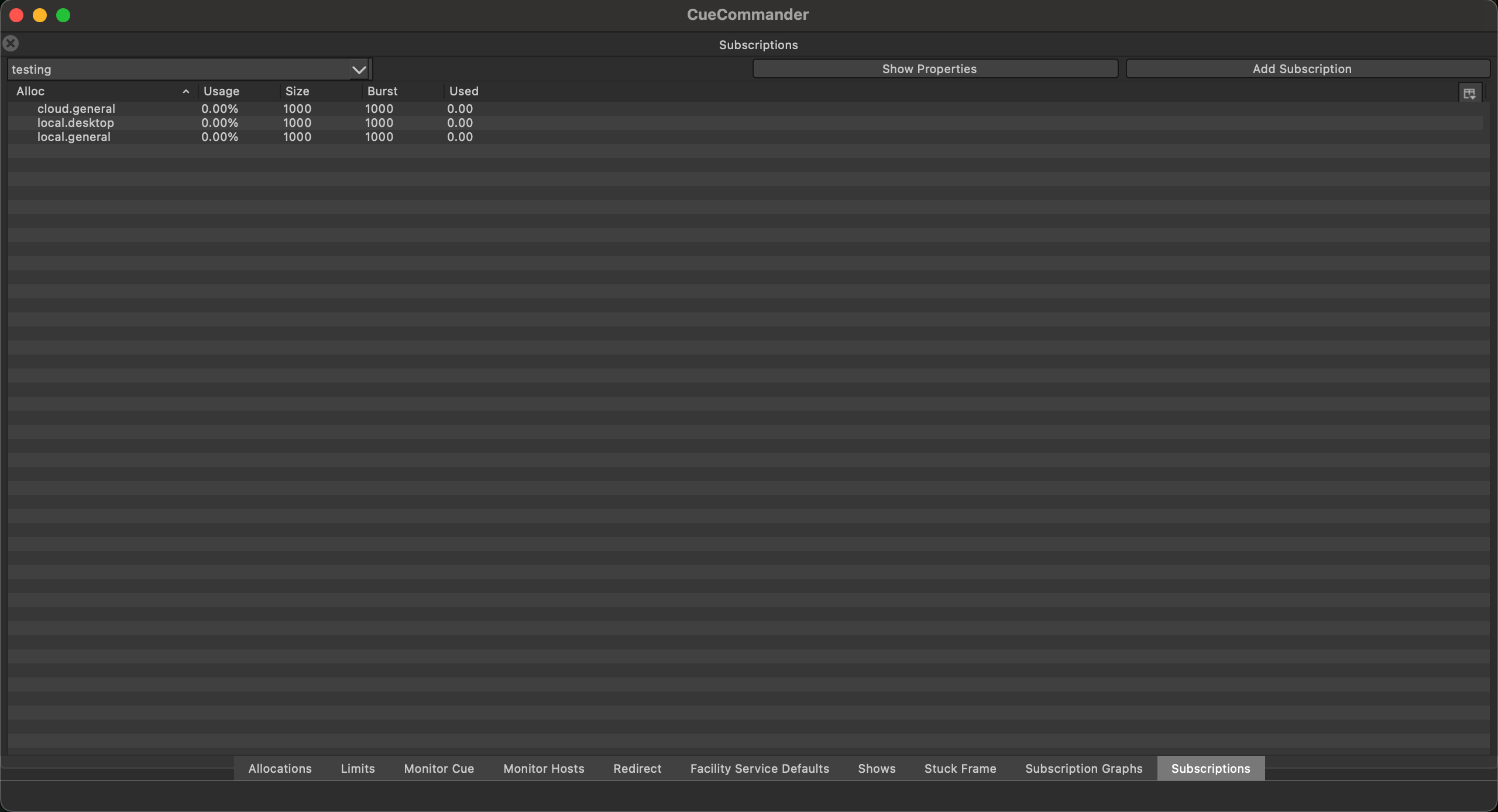

Subscriptions Interface

Purpose

Configures and manages subscriptions that link shows to allocations, determining resource access and priority. Critical for controlling how render capacity is distributed across productions.

Key Features

Subscription Management:

Show selection interface
Allocation assignment controls
Priority configuration
Burst capacity settings

Subscription Properties:

Size: Guaranteed resource allocation
Burst: Additional capacity when available
Priority: Subscription priority level
Active: Enable/disable subscriptions

Usage Instructions

Create Subscription:
- Select show and allocation
- Set size and burst values
- Configure priority
- Activate subscription
Modify Subscriptions:
- Adjust size allocations
- Change burst allowances
- Update priorities
- Enable/disable as needed
Monitor Usage:
- Review active subscriptions
- Check utilization levels
- Identify unused subscriptions

Common Use Cases

Production Setup: Configure new show subscriptions
Resource Reallocation: Adjust subscriptions for changing needs
Priority Management: Set subscription priorities for deadlines
Capacity Optimization: Balance subscriptions across shows

Tips & Best Practices

Performance Optimization

Window Management:
- Close unused plugin windows to reduce memory usage
- Use tab grouping for related windows
- Set appropriate refresh intervals
Filter Usage:
- Apply filters to reduce data volume
- Save filter presets for common queries
- Use regex patterns efficiently
Batch Operations:
- Group similar actions together
- Use multi-select for bulk changes
- Schedule maintenance during low-activity periods

Workflow Combinations

Troubleshooting Workflow:
- Start with Monitor Cue for job overview
- Check Stuck Frame for problematic frames
- Use Monitor Hosts to identify host issues
- Apply Redirect to rebalance resources
Capacity Management:
- Review Allocations for resource distribution
- Check Subscription Graphs for visual analysis
- Adjust Subscriptions based on usage
- Monitor with Shows window
Maintenance Workflow:
- Lock hosts in Monitor Hosts
- Set allocations to maintenance mode
- Configure service limits appropriately
- Monitor progress in Monitor Cue

Critical Warnings

⚠️ High-Impact Operations:

Killing jobs removes all running frames immediately
Allocation changes affect all shows using them
Service modifications impact all jobs using that service
Host locks prevent any job execution on those nodes

⚠️ Resource Management:

Avoid oversubscribing allocations beyond capacity
Monitor memory limits to prevent Out-Of-Memory (OOM) kills
Set appropriate timeouts to catch stuck frames
Balance subscriptions to prevent starvation

⚠️ System Stability:

Test service changes on non-production jobs first
Coordinate host maintenance with production schedules
Document all configuration changes
Maintain backup of service and limit configurations

Troubleshooting

Common Issues and Solutions

Issue: Jobs not picking up after allocation change

Solution: Check subscription is active and has sufficient size
Verify hosts are in correct allocation
Ensure no limits are blocking execution

Issue: Frames continuously failing

Solution: Check service memory requirements
Review frame logs for specific errors
Verify software licenses are available
Check host compatibility

Issue: Uneven resource distribution

Solution: Review subscription priorities
Check for allocation locks
Verify burst settings are appropriate
Balance subscription sizes

Issue: Plugin windows not updating

Solution: Check network connectivity
Verify Cuebot connection
Restart plugin or application
Check refresh settings

Issue: Cannot modify allocations/services

Solution: Verify administrator permissions
Check for database locks
Ensure Cuebot is responding
Review system logs for errors

Diagnostic Steps

Check System Status:
- Verify Cuebot connectivity
- Review system resource availability
- Check database responsiveness
Review Logs:
- Examine Cuebot logs for errors
- Check RQD logs on problematic hosts
- Review job/frame logs for patterns
Test Incrementally:
- Make small configuration changes
- Test on single jobs/hosts first
- Monitor impact before scaling

References

CueGUI: Cuetopia Monitoring Guide

Command-Line Equivalents

Many CueCommander operations have CLI equivalents using cueadmin:

# Allocation management
cueadmin -la                    # List allocations
cueadmin -lh -alloc <name>     # List hosts in allocation

# Host management
cueadmin -lh                    # List all hosts
cueadmin -lock <host>          # Lock host
cueadmin -unlock <host>        # Unlock host

# Service management
cueadmin -lv                    # List default services
cueadmin -lv <show>            # List show-specific service overrides

# Show management
cueadmin -ls                    # List shows
cueadmin -create-show <name>   # Create show

# Subscription management
cueadmin -lb <show>            # List show subscriptions
cueadmin -lba <alloc>          # List all subscriptions to an allocation

Python API Reference

CueCommander operations can be automated using the OpenCue Python API:

import opencue

# Allocation operations
allocations = opencue.api.getAllocations()
alloc = opencue.api.findAllocation("local.general")
alloc.reparentHosts(["host1", "host2"])

# Host operations
hosts = opencue.api.getHosts()
host = opencue.api.findHost("rendernode01")
host.lock()

# Service operations (Note: Service management is done via API, not CLI)
services = opencue.api.getDefaultServices()
service = opencue.api.createService("custom_service")  # No CLI equivalent

# Show operations
shows = opencue.api.getShows()
show = opencue.api.findShow("production")

CueGUI: CueCommander Administration System

Introduction

Target Audience

Core Capabilities

System Overview

Application Layout

Window Management

Plugin Windows

1. Allocations

Purpose

Key Features

Usage Instructions

Common Use Cases

2. Limits

Purpose

Key Features

Usage Instructions

Common Use Cases

3. Monitor Cue

Purpose

Key Features

Usage Instructions

Common Use Cases

4. Monitor Hosts

Purpose

Key Features

Usage Instructions

Common Use Cases

5. Redirect

Purpose

Key Features

Usage Instructions

Common Use Cases

6. Services

Purpose

Key Features

Usage Instructions

Common Use Cases

7. Shows

Purpose

Key Features

Usage Instructions

Common Use Cases

8. Stuck Frame

Purpose

Key Features

Usage Instructions

Common Use Cases

9. Subscription Graphs

Purpose

Key Features

Usage Instructions

Common Use Cases

10. Subscriptions

Purpose

Key Features

Usage Instructions

Common Use Cases

Tips & Best Practices

Performance Optimization

Workflow Combinations

Critical Warnings

Troubleshooting

Common Issues and Solutions

Diagnostic Steps

References

Related Documentation

Command-Line Equivalents

Python API Reference
