CueGUI app

Interact with CueGUI

---

This page describes the main functions of CueGUI, the OpenCue graphical user interface for artists.

Within the Monitor Jobs view, there are two main sections. The top section shows loaded jobs. Double-clicking on a job populates the bottom section with the job details. These details are broken out by layers and frames. Hovering over any of the column headers displays an explanation for the column.

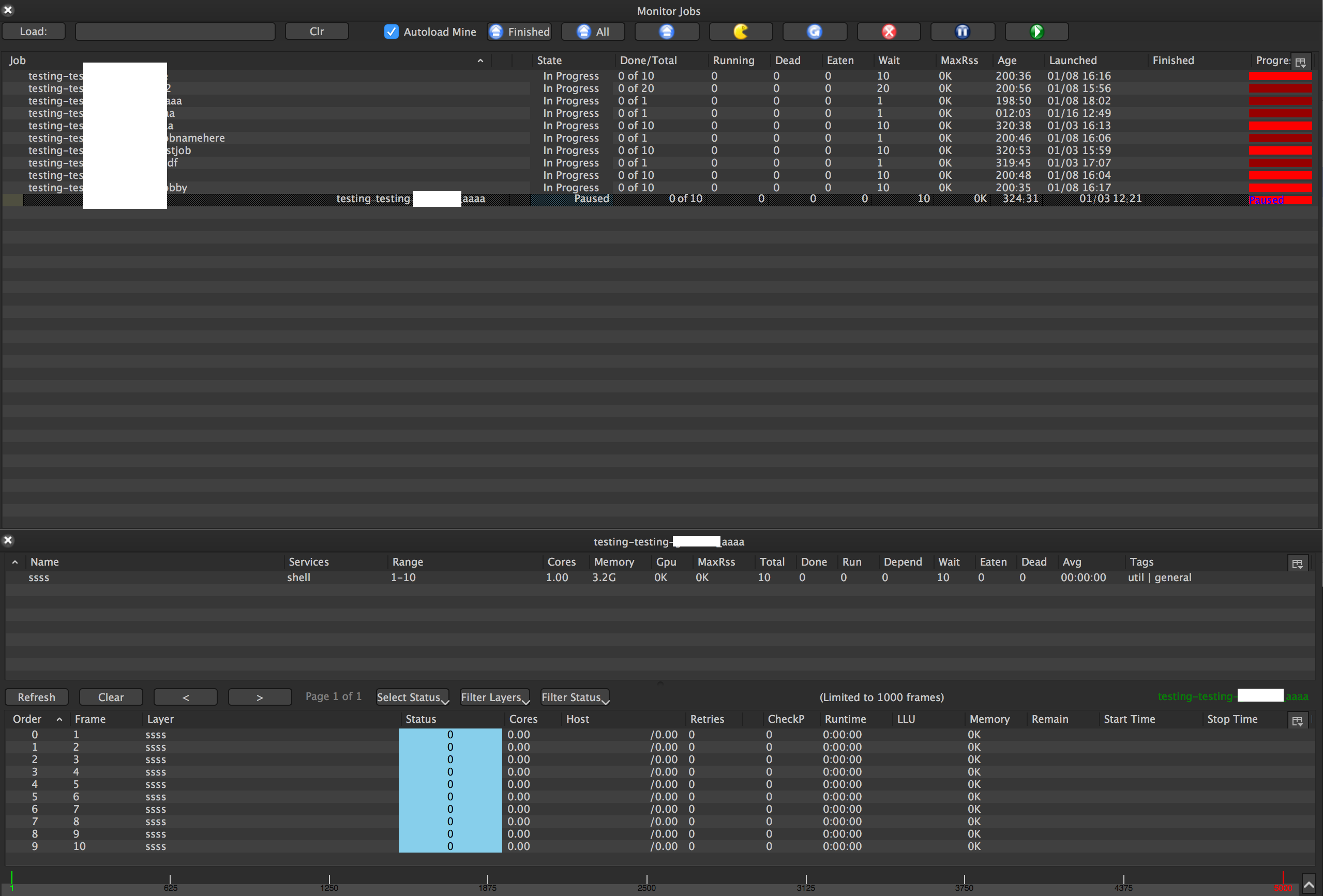

The following screenshot displays the CueGUI Monitor Jobs view:

Booking to your local workstation

Booking to your local machine is a useful way to fast-track a render or run quick tests. You can book to your local machine from the Assign Local Cores dialog. To launch the dialog, right-click on a job in the Monitor Jobs view and select Use local cores….

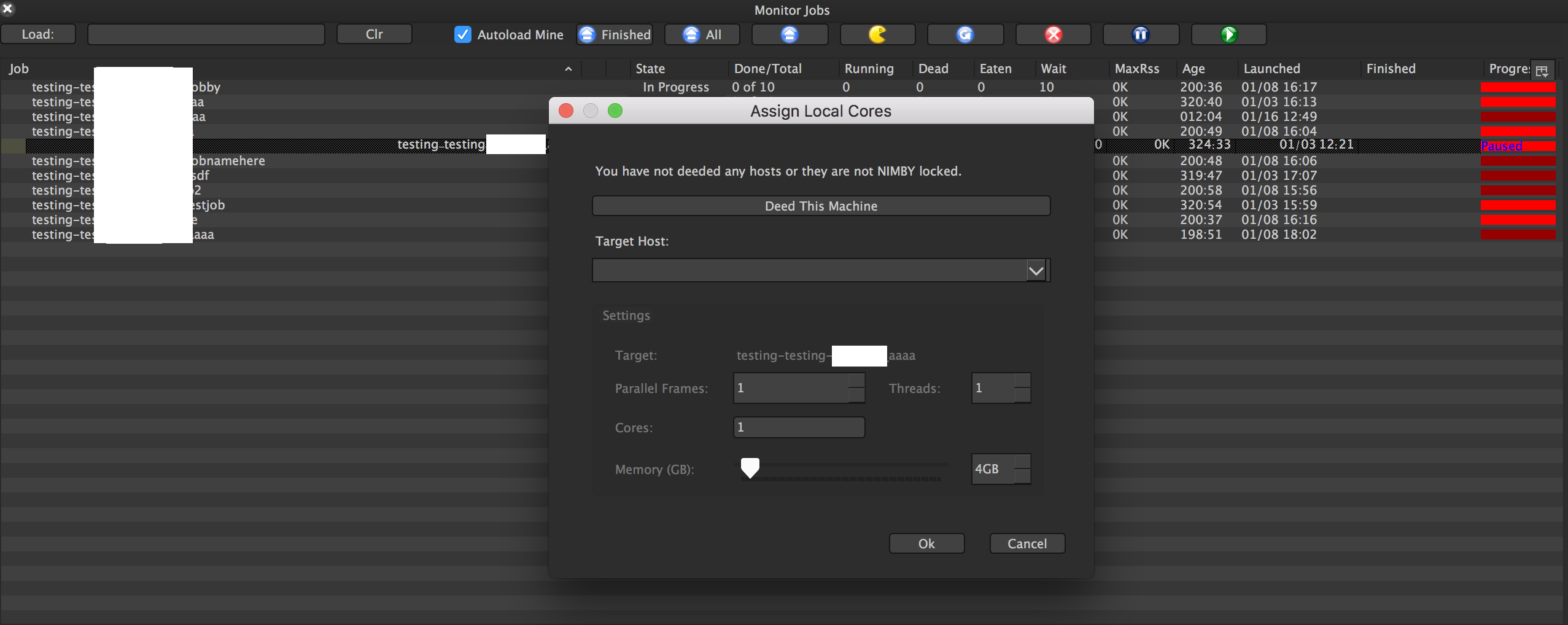

The following screenshot displays the CueGUI Assign Local Cores dialog:

Viewing logs

To view the log for a frame, double-click on the frame.

To open the log in an external text editor, right-click on the frame and select View Log.

To configure the external text editor, update the value of your EDITOR environment variable. cuegui/Constants.py also defines a default editor if the value of the EDITOR variable isn’t set.

Copying names to clipboard

CueGUI provides convenient copy buttons to quickly copy job, layer, and frame names to your system clipboard. This feature is useful for:

• Sharing job references with team members
• Creating reports or documentation
• Using names in scripts or other tools
• Quick reference when switching between applications

Copying job names

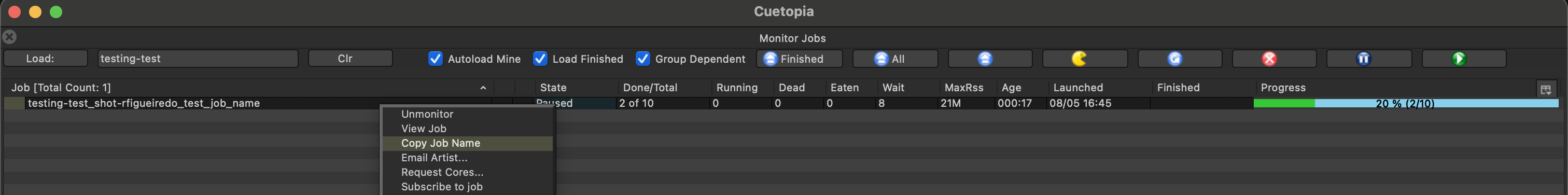

To copy a job name to the clipboard, right-click on a job in the Monitor Jobs view and select Copy Job Name. The exact job name will be copied to your clipboard.

Copying layer names

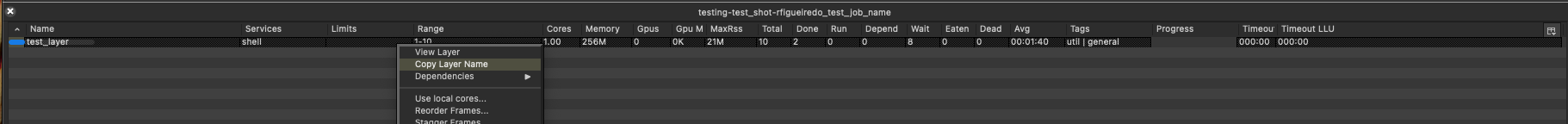

To copy a layer name, right-click on a layer in the job details view and select Copy Layer Name. This copies the layer name to your clipboard.

Copying frame names

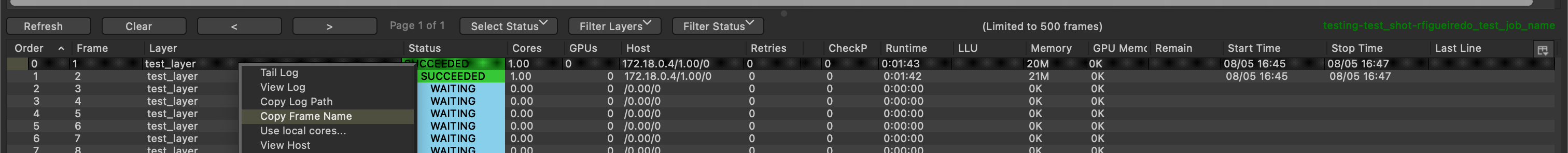

To copy a frame name, right-click on a frame in the frame list and select Copy Frame Name. The frame name will be copied to your clipboard.

All copy buttons use the same icon as the “Copy Log Path” feature for visual consistency. When multiple items are selected, all selected names will be copied to the clipboard separated by spaces.

Managing frames

To manage frames, select one of the following:

• Retry - Retrying a frame stops rendering and retries the frame on another proc.
• Eat - Eating a frame stops rendering and doesn’t try to continue processing the frame.
• Kill - Killing a frame stops rendering and books to another proc.

Rendering and staggering frames

To reorder the way frames are rendered, right-click on either the job or the layer and select Reorder Frames:

1. Select the frame range to be reordered.
2. Select the order: First, Last, Reverse.

To stagger frames, right-click on either the job or the layer and select Stagger Frames:

1. Select the frame range to be staggered.
2. Select the increment to be staggered.

Previewing frames

To preview the output of a running frame, right-click on the frame and select either Preview Main or Preview All:

• Preview Main - Previews the primary output of an Arnold render.
• Preview All - Previews all the Arbitrary Output Variables (AOV) of an Arnold render.

Leaving comments on jobs

You can add and manage comments for individual jobs from the Comments dialog. To open the dialog right-click on a job in the Monitor Jobs view and select Comments….

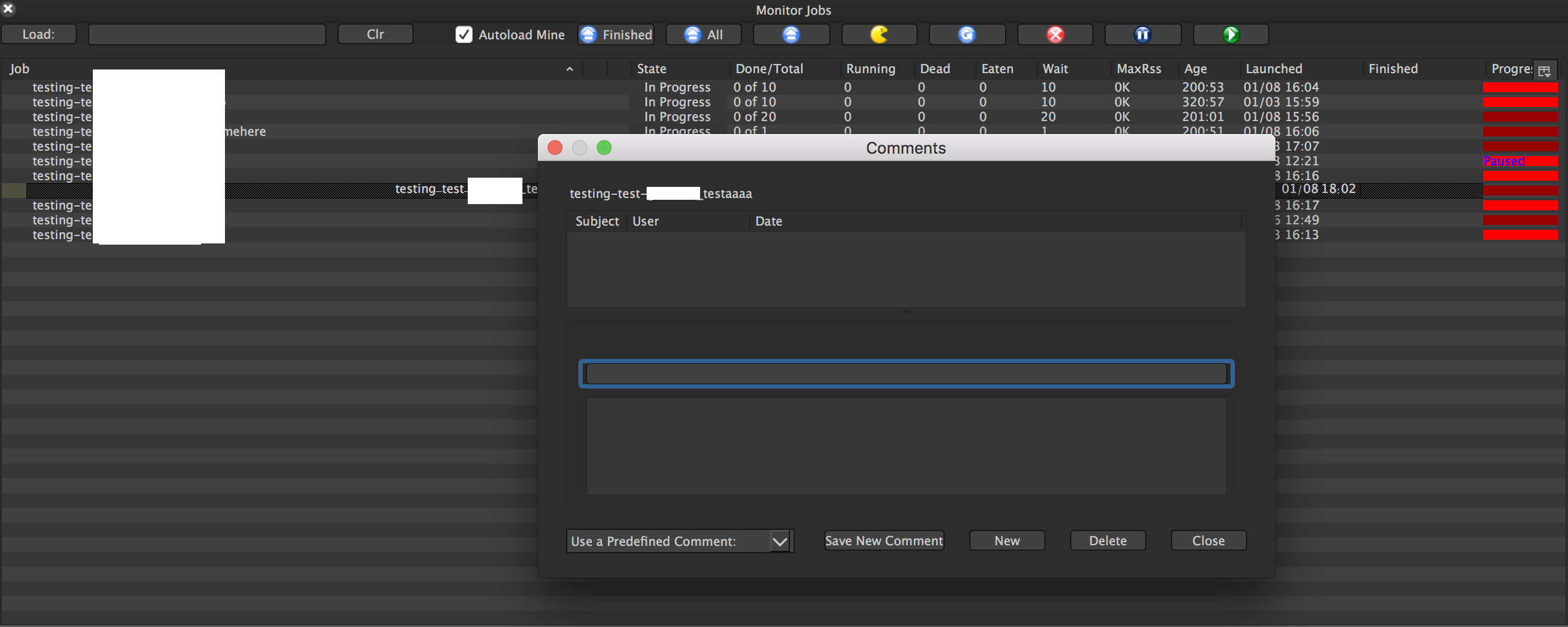

The following screenshot displays the CueGUI Comments dialog:

Searching for jobs

In the top-left there is a search box to load jobs:

You can perform the following tasks from the search box:

• To display a list of all the running jobs for a shot, type in the shot name.
• To display a list of all of a user’s jobs, type in a username.
• To autoload your own jobs, check the Autoload Mine box.
• To load finished jobs from the last 3 days, check the Load Finished box.
• To group dependent jobs together, check the Group Dependent box.
• Search supports regular expressions for complex pattern matching.

Managing hosts

To view and manage available render machines, click Views/Plugins > Cuecommander and select the Monitor Host plugin. This view displays a list of render *Hosts and a list of active Procs.

To manage a render host, right-click on the host name and select one of the available actions. Some of the common actions include:

• Restarting the host
• Changing the tags on the host
• Changing the allocation associated with the host
• Locking/Unlocking the host

Managing services

To edit and add services to OpenCue:

1. Click Views/Plugins > Services and select the Services plugin.

   From this view, you can add or select a service to edit.

2. Select a service from the list on the left.

   You can modify the CPU, memory, and GPU requirements. You can also define the tags associated with this service.

3. Click Save to push your changes to Cuebot.
